Multi Channel Recorders

75000.00 - 120000.00 INR/Unit

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Multi Channel Recorders Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 75000.00 - 120000.00 INR/Unit

Multi Channel Recorders Trade Information

FOB Port Ahmedabad
Payment Terms Cash Advance (CA), Cash Against Delivery (CAD), Letter of Credit (L/C), Cash in Advance (CID), Cheque
Supply Ability 500 Unit Per Day
Delivery Time 1-2 Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Carton Box.
Main Domestic Market All India
Certifications CE, uL, CuL, RoHS

Product Description

We have gained immense appreciation from our clients in this domain for efficiently distributing Digital Temperature Recorder. At our end, we make sure that all our recorders are procured from some of the renowned vendors present in market. Our offered Digital Temperature Recorder is immensely used to record temperature conditions efficiently. In compliance to industrial standards and norms, all these recorders are available in market in different specifications. We offer all these recorders with universal input and range & IP-65 conformed with dust- proof & water- proof features.

Features

Compact Size: 144 (W) x 144 (H) x 150 (D) mm
1.5 kg (6 point recorder) or lightest weight on an industrial level
Universal input and range
RS-232C communication function provided for in standard specifications
Option (detailed on the reverse of ordering information) & consumables available
IP-65 conformed with Dust- proof & Water- proof
UL, CSA & CE approvals

Consumables

Chart Paper: (HZCGA0105EL001)
Ribbon Cartridge for 6 point recorder: (WPSR188A000001A)
Ribbon Cartridge for 1 pen/ 2 pen recorder: (HPSR001H0002C)
Cartridge Pen: (WPSR196A000001A; No.1)
Cartridge Pen: (WPSR196A000002A; No 2)
Shunt Resistance: (HMSU3081A01)

Specifications

Title		PEN Recorder	Multi point Recorder
Input	Number of Inputs	1 pen or 2 pen or 6 points	6 point
	Measuring Cycle	125ms	10s/6ch, max
	Input Type	Direct voltage: +- 10mV, 0-20mV, 0-50mV, +-200mV, +-1V, +-10V, 0-5V
		Direct current: 4-20mA (250 shunt resistance required to install externally)
		Thermocouple: K,T,J,E,B,S,R,C,N, PR40-20, PL II, L, Au-Fe, U
		R.T.D.: Pt100, Jpt100
Performance	Accuracy	+-0.3% +- 3 digit max. for digital indicator/ printing
	Noise Reduction	NMRR (Normal mode): 60dB min. (50/60Hz +- 0.1 Hz)
	Noise Reduction	CMRR (Common mode): 140dB min. (50/60Hz +- 0.1Hz)
	Isolation Resistance	Each terminal/ground: 500V DC, 20m min
	Voltage- proof	Power input terminal/ground: 1.5kV AC, 1 minute Input terminal/ground: 0.5kV AC, 1 minute
	Vibration-proof	10~60Hz, 1m/s2 max
	Shock-proof	2m/s2 max
Alarm	Number of Relay Outputs	3 outputs (form A contacts: Built-in option)	6 outputs (Form A contacts: Built-in option)
Alarm	Capacity	250V AC 3A max loaded, 30V DC 3A max loaded
Communication	Interface	RS-232C (Standard), RS-485 (Option)
Power Supply	Rated Power Voltage	100-240V AC (50/60Hz)
	Power Consumption	30VA max. (100V AC)	25VA max (100V AC)
Structure	Mounting/Housing	Panel mounting/ Front panel: Dust- proof, water- proof (IP-65)
	Dimensions	144 (W) x 144 (H) x 150 (D) mm
	Gross Weight	2.0-2.5 kg max	1.5 kg max
Operating Condition	Allowable Condition	Temperature: 0-50C, Humidity: 20-80%RH
Recording/Printing	Recording	Disposable felt pen	Wire dot 6 color ribbon
	Printing	Wire dot 1 color ribbon	Wire dot 6 color ribbon
	95% Step Response Time	1.0s max
	Dot Print Cycle		10.0s/6ch max
	Chart Paper	Length: 16m, Width: 114mm, Width folded: 40mm
	Chart Speed	User-selective from 41 speeds in range: 5-12000mm/hr	User- selective from 34 speeds in range: 0-1500mm/hr
	Printing Color	Red, Green	Purple, Red, Green, Blue, Brown, Black

Advanced Data Logging Technology

Built to excel in complexity, the Multi Channel Recorder enables simultaneous tracking of temperature across several points. This leads to comprehensive and reliable records critical for maintaining strict process controls, especially in sensitive industrial applications. The metal construction ensures longevity and resistance to daily wear.

User-Friendly Electronic Operation

Leveraging electronic technology, the device offers intuitive controls and clear displays. Operating at a standard 220 Volt (v) supply, it integrates easily with existing industrial equipment. The straightforward interface ensures smooth user experience for both experienced technicians and new operators.

Designed and Manufactured in Japan

Dedicated to maintaining the highest standards, these recorders are produced and supplied from Japan, ensuring precision, reliability, and adherence to global quality benchmarks. The manufacturers commitment to innovation makes this recorder a preferred choice in demanding environments.

FAQs of Multi Channel Recorders:

Q: How do I use the Multi Channel Temperature Recorder?

A: To operate the Multi Channel Temperature Recorder, connect the temperature sensors to the input channels, power the unit with a 220 Volt (v) supply, and use the electronic interface to configure recording parameters. Data can then be monitored and recorded from multiple locations simultaneously.

Q: What are the main benefits of using a metal-bodied, electronic recorder?

A: A metal body enhances durability and provides effective protection against physical impacts, while electronic operation enables precise control, high accuracy in temperature readings, and the ability to store and process large amounts of data efficiently.

Q: Where can this recorder be used effectively?

A: This temperature recorder is ideal for use in industrial settings, laboratories, manufacturing facilities, or any environment where accurate temperature monitoring across multiple locations is critical for quality assurance and process control.

Q: When should I calibrate or maintain the device?

A: Periodic calibrationgenerally six to twelve months depending on usageensures continued accuracy. For optimal performance, routine maintenance checks should be performed following your facilitys standard operating procedures or as recommended in the product manual.

Q: What is the process for installing the recorder in my system?

A: Installation involves securely mounting the recorder in a suitable location, connecting the necessary power (220 V) and input sensors, and configuring the settings. Detailed installation instructions are provided in the product manual for seamless integration with your system.

Q: How does the multi-channel feature enhance the recording process?

A: The multi-channel capability allows simultaneous recording from several temperature points. This facilitates faster, more comprehensive monitoring, making it easier to identify trends, detect anomalies, and optimize processes across your operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

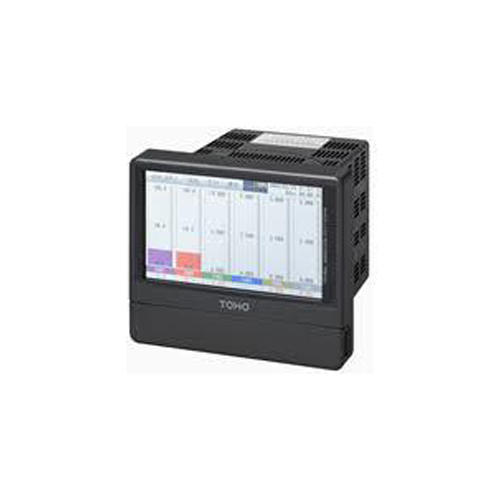

Other Products in 'Paperless Recorder' category
